ECO-RBU Series
RESIN-BOND UPGRADE
New Eco-Friendly Resin-Bond Upgrade Cartridges
Jonell Systems’ new Eco-friendly Resin-Bond Upgrade (ECO-RBU) delivers significant performance enhancements to traditional resin bonded filters – without the use of harmful resin.
The ECO-RBU was specifically designed to serve the Energy and Chemical industries with the environment, industry requirements, customer needs, and traditional resin bond product challenges at the forefront.
Made with 70% recycled fibers, and without environmentally-harmful resin, the ECO-RBU supports the Energy and Chemical industry’s focus on ESG without forfeiting performance.
The ECO-RBU offers 100% improvement on open matrix/void space compared to outdated resin bonded technology and 15% greater open area (void space) resulting in lower dP and longer life while maintaining a consistent and repeatable efficiency. Further, the ECO-RBU delivers more than a 30% increase in Dirt Holding Capacity (DHC) compared to traditional resin-bonded technology and similar depth filters.

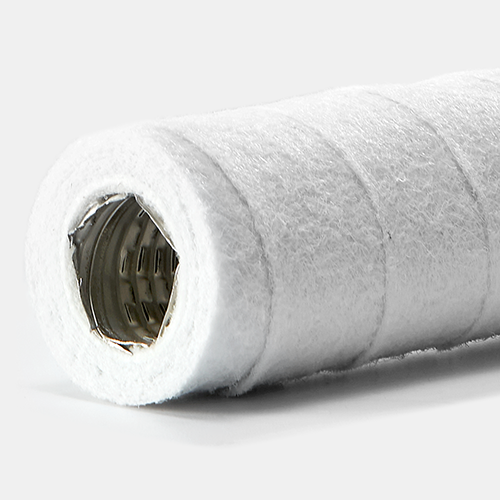

ENHANCED CORE DESIGN MITIGATES MOVEMENT

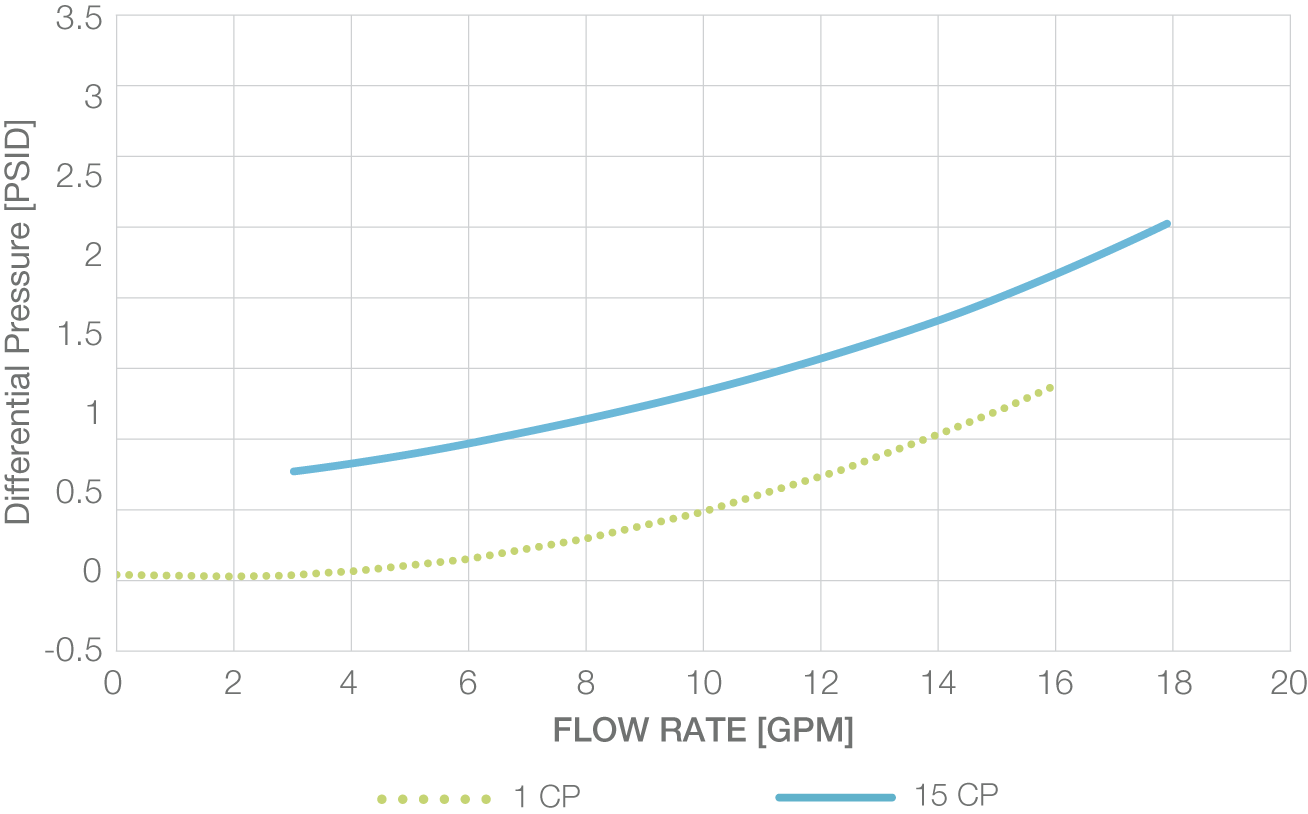

FLOW CURVES
1 CP / 15 CP
ECO-RBU vs Typical Resin Bond
The 50x magnification images of two clean filters demonstrate how the ECO-RBU achieves such incredible open area (void space) improvements compared to traditional resin bonded filters.
ECO-RBU’s resin-free design delivers additional advantages, such as lower dP and longer filter life with consistent and repeatable efficiency, with greater than 30% DHC.
Specifications
| SPECIFICATIONS | ECO-RBU |
| Diameter | OD 2.5″ // ID 1.35″ |
| Nominal Lengths | 10″, 20″, 30″, 40″ |
| Media Type | Polyester |
| Gasket | N/A |
| Micron Range | 5 – 125 |
| End Cap Style | Double Open End (Standard) |
| Cores | Tinned Steel Core / Stainless Steel |
| Temperature | 240 ºF (115 ºC) |
| Recommended changeout dP | 50 psid |
| Maximum dP | 75 psid |
| Common Applications | Glycol, Condensate, Water, High Temp Solvents, Waste-water Streams, Asphalt, Bunker Fuels, Grease, Sealants, Aminos, Alkyds, Waxes, Silicone, Antifreeze, Epoxies, Pesticides, Process Fluids, Paints & Inks, Coatings, Resins |
Wondering if ECO-RBU is right for your application?
Get in touch with us today to find about about which ECO-RBU cartridge will be suitable for your application.
Approaching filtration with a process optimization mindset, our wide solution range, now including ECO-RBU, vast industry experience and application knowledge allows us to recommend the right solution for your filtration needs.
