GSD-Series Stacked Disc Depth Filters
Designed specifically for high solids removal without efficiency loses

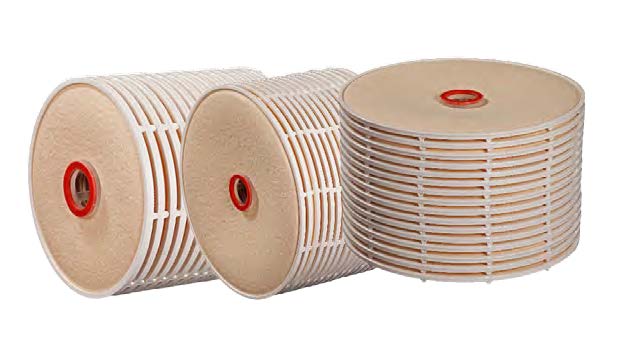

GSD-Series Stacked Disc
Global Filter’s GSD-Series Stacked Disc filter delivers high solid loading capacity across applications.
GSD-Series Stacked Disc depth filter elements are constructed from individual cells of a blend of cellulose and diatomaceous earth (DE). Each cell is constructed under compression with polypropylene edge seals and separators. Multiple gasket materials are available to ensure chemical compatibility in a wide range of liquid applications. Stacked Disc depth filter elements are ideal for applications ranging from low-capacity laboratory environments to large-scale production volumes for high solids removal or to protect downstream pleated depth or membrane filtration and equipment. DE exhibits an inherent positive charge which can support the removal of negatively charged ions and haze-causing particulate.
Flow Curves

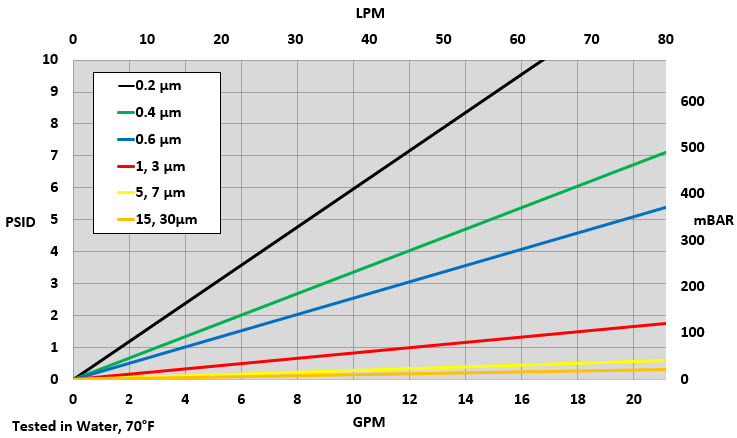

12 Inch Outside Diameter 16 Cell

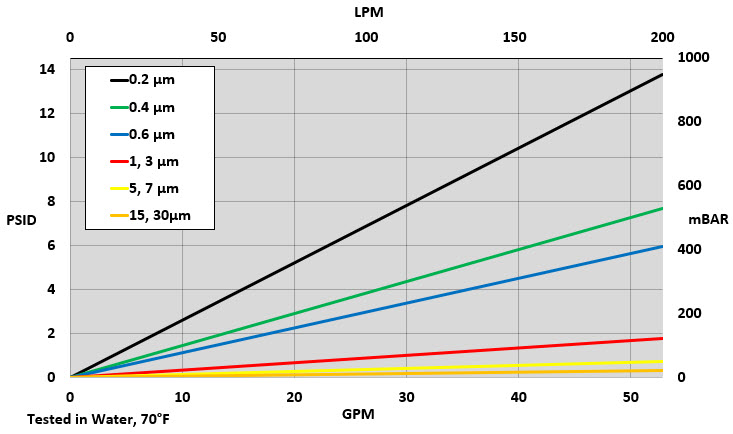

16 Inch Outside Diameter 16 Cell
GSD-Series Specifications
| Specifications | GSD |
| Diameter | 12″ or 16″ |
| Media | Cellulose & Diatomaceous Earth or Cellulose |
| Gaskets | Buna, EPDM, Silicone, Viton |
| Micron Ratings | 0.2, 0.4, 0.6, 1, 3, 5, 7, 15, 30 |
| Temperature (Max) | 176 ̊F (121 ̊C) |
| Differential Pressure (Max) | 30 PSID (2.1 Bar) at 68 ̊F (20 ̊C) |
| Cells | 16 |
| Typical Applications | Pre-filtration for viscous or hazy fluids |
Wondering if the GSD-Series will work for you?
Contact Waco Filters today to determine if the GSD-Series will be optimal for your application.
