GHLS-Series Lofted Pleated Polypropylene
Designed for the removal of contaminants in highly viscous fluids such as oils and gels
New GHLS-Series Lofted Pleated Polypropylene
Global Filter’s new GHLS-Series Lofted Pleated Cartridge delivers significant performance in applications with high viscosity.
The GHLS-Series is designed specifically for the removal of agglomerated and deformable contaminants in oils and gels. The pleat and media design provides a combination of depth and pleated depth functionality. This allows for high retention and holding capacity without inhibiting throughput.
The media is encapsulated in an integral, continuous-length, thermally-bonded structure for cleanliness, pressure tolerance, and chemical tolerance.
Offered in both absolute and nominal rating grades with common end cap adapter configurations. Micron ratings from 0.45 to 40. Manufactured in a clean-room environment to maintain high standards of purity and cleanliness.
Media Design

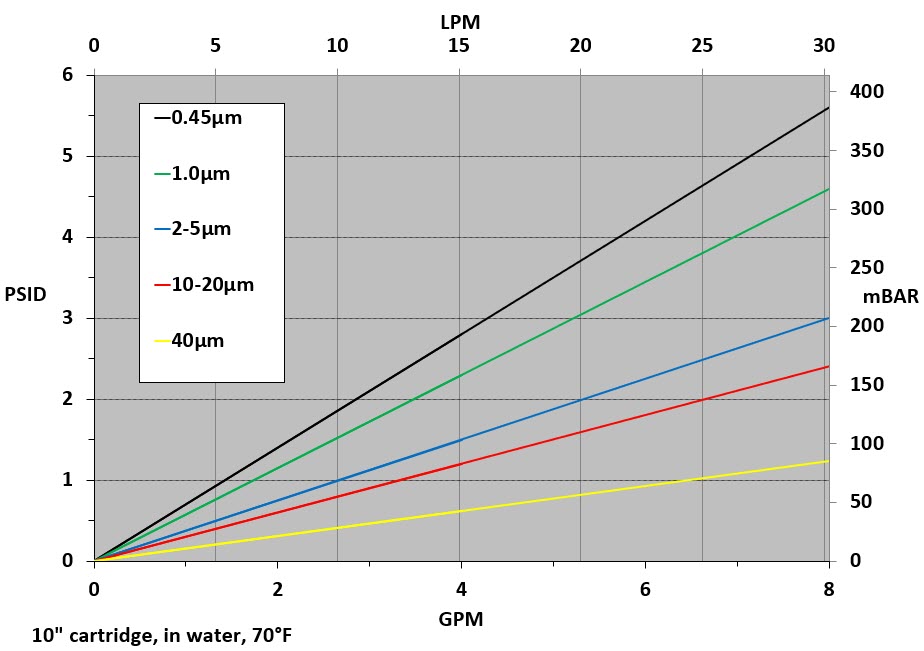

Flow Curve
GHLS-Series Specifications
| Specifications | GHLS |
| Diameter | 2.70 inches (7.0 cm) |
| Lengths | 10 to 40 inches (25.4 to 101.6 cm) nominal |
| Media | Polypropylene |
| Gasket | Buna, EPDM, Silicone, Teflon® Encapsulated Viton®, Viton®, Teflon® Encapsulated Silicone |
| Micron Ratings | 0.45-40 |
| End Cap Styles | Double Open End, 222 w/ FIN, Spring, or Flat Cap, 226 w/ FIN, Spring or Flat Cap, 213 Internal O-Ring, 222 3-Tabs w/ FIN |
| Cores | Polypropylene, Heavy Polypropylene, Glass Reinforced, Stainless Steel |
| Temperature | 176 ̊F (80 ̊C) |
| Recommended Change-Out dp | 35 PSID |
| Maximum dp | 60 PSID (4.1 bar) at 68 ̊F(20 ̊C) |
| Typical Applications | Agglomerated Particles, Edible Oils, CBD Oils, Gels, CMP Slurries, Inks, Coatings, and Paints |
